Skyzone Tower Parking – Smarter Vertical Parking
High-Density Parking Solution
Optimizes land use by leveraging vertical space, enabling higher ROI per square foot.
Automated Efficiency
Reduces human error, traffic congestion, and operational costs with fast, automated retrieval.
Value-Add for Premium Projects
Enhances project positioning, sustainability, and compliance with urban parking norms.
High-Density Parking Solution
Optimizes land use by leveraging vertical space, enabling higher ROI per square foot.
Automated Efficiency
Reduces human error, traffic congestion, and operational costs with fast, automated retrieval.
Value-Add for Premium Projects
Enhances project positioning, sustainability, and compliance with urban parking norms.
Product
Tower Parking
Type
RCC Bracket, RCC Column, Steel Structure
Capacity
Upto 3.5 Ton
Travel Height
Upto 90 mtrs
Speed
Up to 1.5 mps

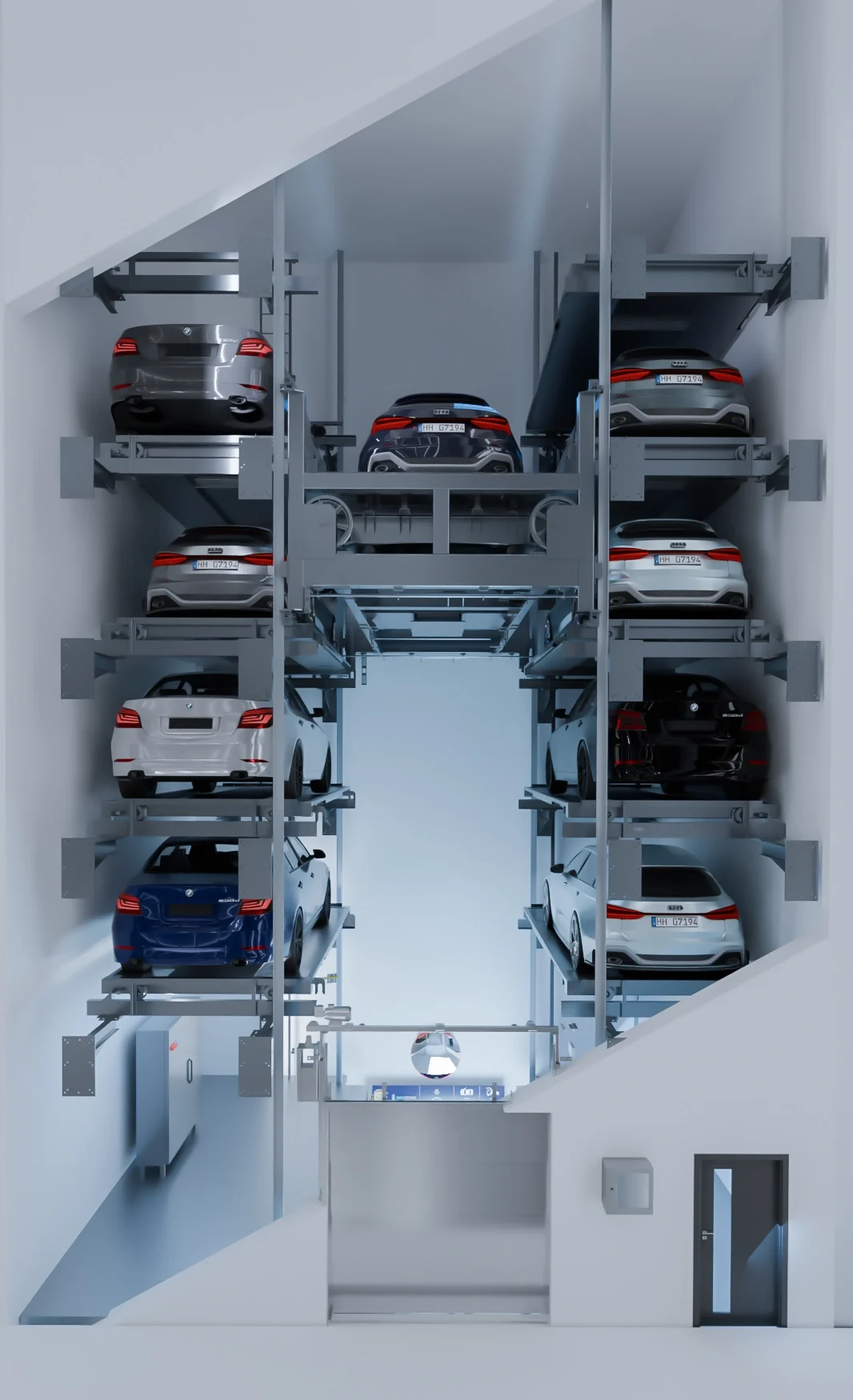

Skyzone Tower Parking is an advanced automated system that utilizes vertical space to maximize car capacity with heights up to 90 meters. Designed for above-ground, below-ground, or hybrid installations, it is compatible with RCC, steel, or mixed structures. Equipped with smart touchscreen controls, RFID access, vehicle profile checking, and integrated safety features, Skyzone ensures a safe, efficient, and future-ready parking experience.
Features
All images used are for illustrative and representation purposes only.*
For More Details & Features Contact Us:

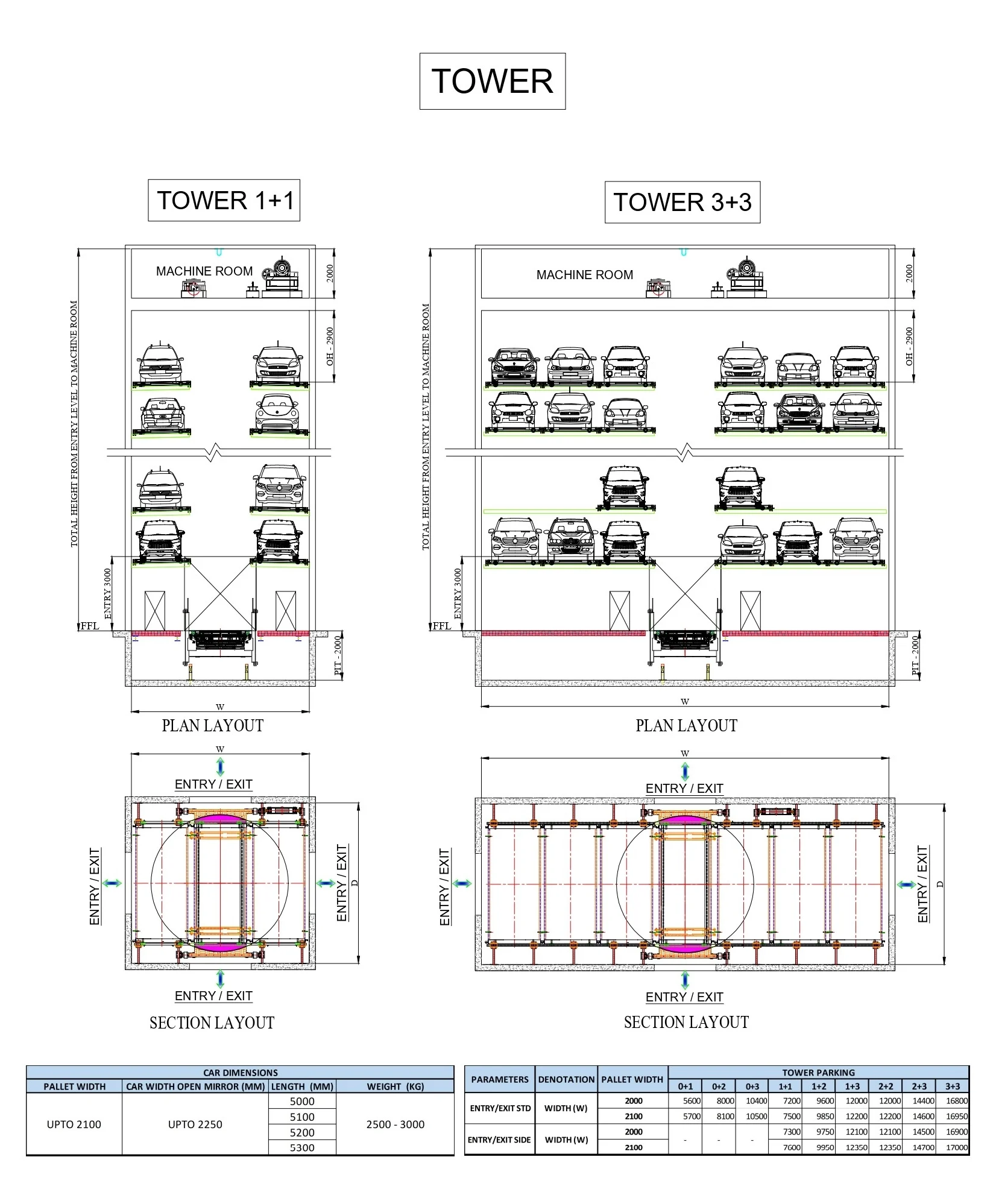

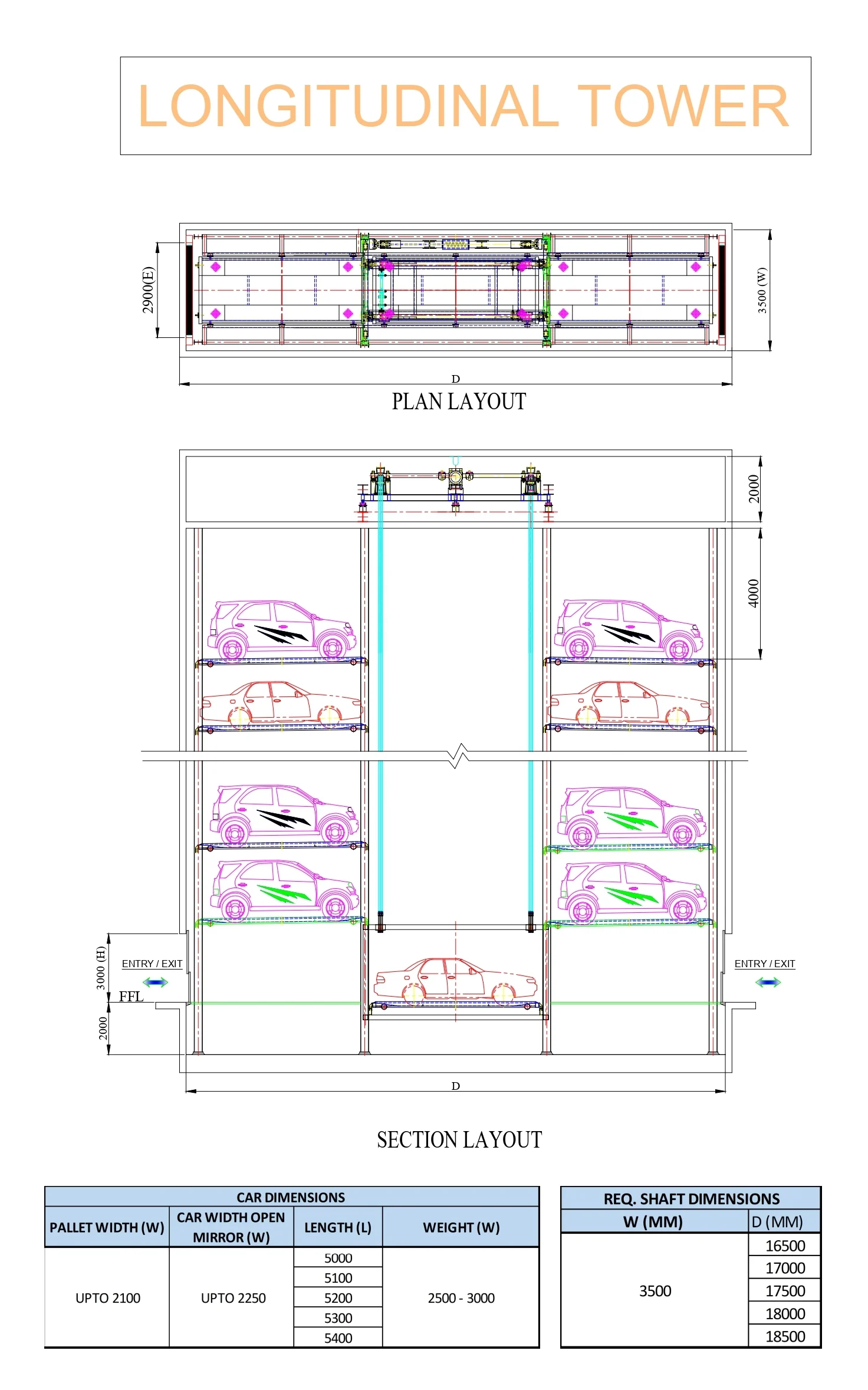

Structure
Additional Features
All images used are for illustrative and representation purposes only.*
For More Details & Features Contact Us:
Technical Specification
01
Wide vehicle compatibility
Designed to accommodate a broad range of cars and SUVs
02
Flexible Structural Configurations
The tower parking systems can be engineered in various configurations to suit diverse project requirements.
- Integrated RCC steel structure
- Steel structure
03
Configurable Parking Depths
The system can be designed with single-deep, double-deep, or triple-deep configurations on either side of the lift, or a custom combination based on space availability.
04
Adjustable Parking Levels
System available with 2 variable level heights to maximize parking capacity.
05
Flexible Entry & Exit
Supports straight,opposite or adjacent types access positions along with integrated turn table
06
High Load Capacity
Mention as System supports upto 3000 kgs
Design
Maximum Space Utilization
Advanced Safety & Reliability
Flexible Access & Operation
High Performance & Customization
Future-Ready Features
Projects
Thakur Nandanvan, Borivali
2+1 Tower Parking
Rustomjee Summit, Borivali
1+1 Tower Parking
Ruby Hall Clinic, Pune
1+1 Tower Parking
See all Projects
Frequently Asked Questions
What makes the Eros Tower Parking System different from conventional parking?
The system maximizes vertical and pit space, reducing ground footprint while offering automated, safe, and hassle-free parking.
How many types of vehicles can the system accommodate?
It supports a wide range of vehicles with widths up to 2200 mm, lengths up to 5300 mm, and heights up to 2000 mm, with load capacities of 2000–2500 kg (customizable for larger SUVs and premium cars).
Is the system safe and reliable for daily use?
Can the tower parking system be customized to fit different project requirements?
Absolutely. It can be configured in single, double, or triple-deep formats, designed up to 70m in steel or 90m+ in RCC, with options for lengthwise/widthwise parking and customized entry/exit points.
Does the system support modern needs like EV charging and smart access?

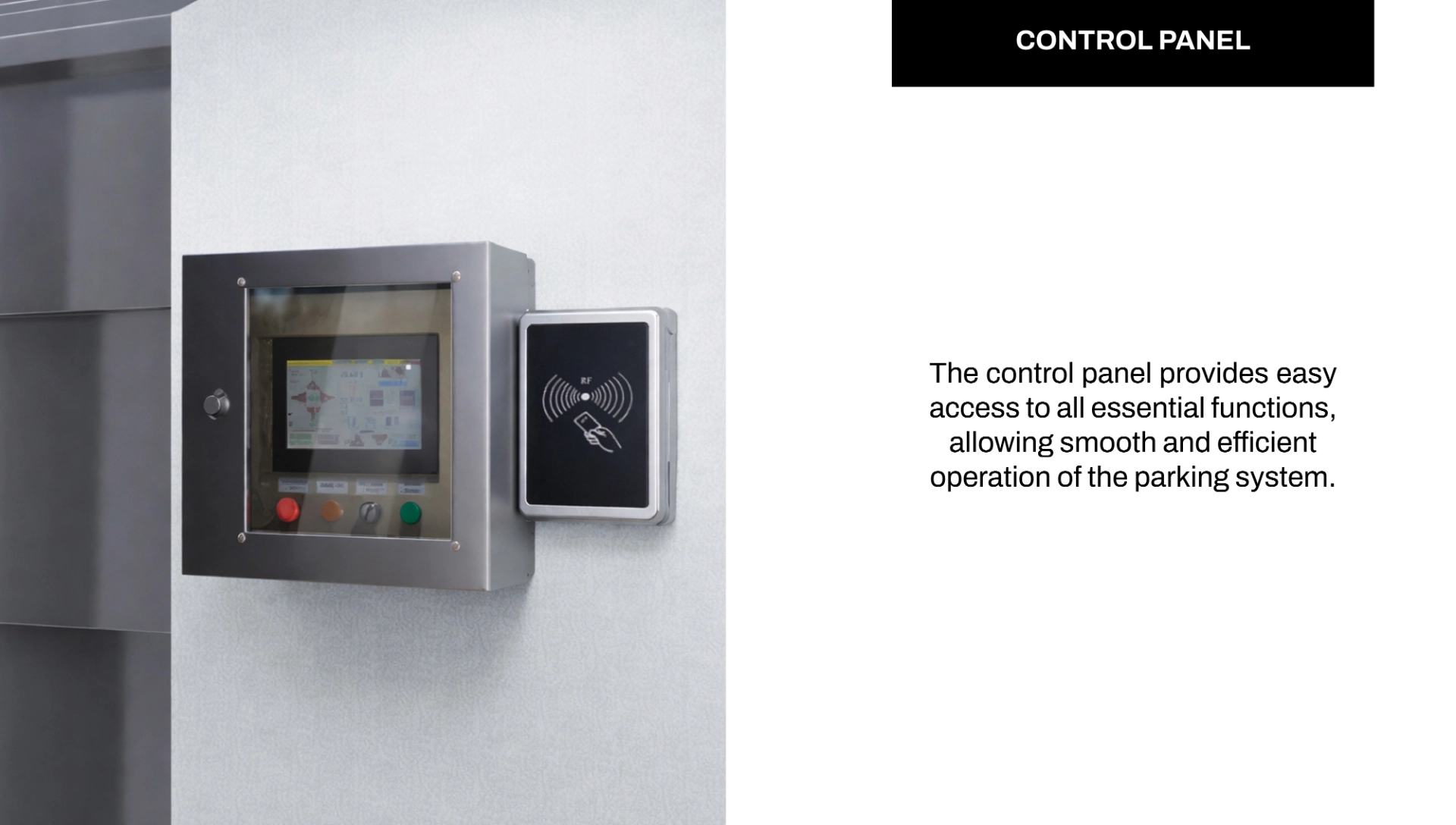

Yes, EV charging integration is available, along with smart operations via PLC touchscreen, RFID authentication, and optional mobile app controls.
Yes, the structure is validated with STAAD software as per IS codes, and is equipped with advanced safety features such as obstacle sensors, profile checks, overspeed governors, and emergency systems.
